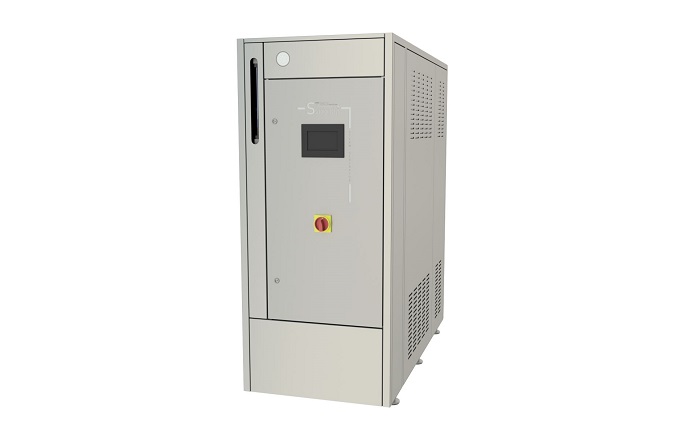

EGOS 15
Full stainless steel electric steam generator equipped with automatic software, which enables easy pressure adjustment, automatic reporting of desalinization needs of the generator (fully automatic operation), and automatic control of the heating elements and their wear. Performance of EGOS- 15 is 21 kg of steam per hour and maximum working pressure up to 6.0 Bar.
Main benefits:
- compact, low-maintenance device – with easy operation,
- pressure control possible from 0 to 6.0 Bar on PLC panel,
- demineralized water buffer tank integrated inside the machine,
- possibility to regulate generator output within 6 power levels on PLC panel,
- power consumption control on the display,
- consumption monitoring possible from initial installation and every power-up,
- waste water cooler for automatic desalination plant,
- electric heating elements made of stainless steel with large heating surface,
- allows installation in the workspace,
- automatic blowdown and desalination,
- equipment suitable for humid environments,
- made in the Czech Republic with CE certification.
Technical specification:
|
Type of el. generator
|
EGOS - 15
|
|
Input power
|
15 kW
|
|
Max. steam output
|
21 kg / h
|
|
El. connection values
|
20 kW / 24 A
|
|
Operating voltage
|
3 x 400 V / 50 Hz
|
|
Set pressure of safety equipment
|
7 Bar
|
|
Working pressure range
|
0 - 6 Bar
|
|
Water content
|
25 l
|
|
Dimensions
|
w784 x l1300 x h1850 mm
|
|
Weight (net)
|
410 kg
|
|
Weight (brutto)
|
545 kg
|
|
Connections
|
Cooler waste
|
DN 40
|
|
Water supply
|
G ½´´
|
|
Steam
|
G ½´´
|
|
Overflow storage tank
|
G 1´´
|
|
Drain from storage tank
|
G ½´´
|
|
Condensate
|
G ¾´´
|
|
Material
|
AISI 304
|
|
Control
|
Automatic
|
|
PLC panel
|
7 ´´
|
|
Warning system
|
Included / SMS or Email notification
|
EGOS 50
Full stainless steel electric steam generator equipped with automatic software, which enables easy pressure adjustment, automatic reporting of desalinization needs of the generator (fully automatic operation), and automatic control of the heating elements and their wear. Performance of EGOS- 50 is 65 kg of steam per hour and maximum working pressure up to 6.0 Bar.
Main benefits:
- compact, low-maintenance device – with easy operation,
- pressure control possible from 0 to 6.0 Bar on PLC panel,
- demineralized water buffer tank integrated inside the machine,
- possibility to regulate generator output within 6 power levels on PLC panel,
- power consumption control on the display,
- consumption monitoring possible from initial installation and every power-up,
- waste water cooler for automatic desalination plant,
- electric heating elements made of stainless steel with large heating surface,
- allows installation in the workspace,
- automatic blowdown and desalination,
- equipment suitable for humid environments,
- made in the Czech Republic with CE certification.
Technical specification:
|
Type of el. generator
|
EGOS - 50
|
|
Input power
|
50 kW
|
|
Max. steam output
|
65 kg / h
|
|
El. connection values
|
55 kW / 75 A
|
|
Operating voltage
|
3 x 400 V / 50 Hz
|
|
Set pressure of safety equipment
|
7 Bar
|
|
Working pressure range
|
0 - 6 Bar
|
|
Water content
|
25 l
|
|
Dimensions
|
w784 x l1300 x h1850 mm
|
|
Weight (net)
|
445 kg
|
|
Weight (brutto)
|
580 kg
|
|
Connections
|
Cooler waste
|
DN 40
|
|
Water supply
|
G ½´´
|
|
Steam
|
G ½´´
|
|
Overflow storage tank
|
G 1´´
|
|
Drain from storage tank
|
G ½´´
|
|
Condensate
|
G ¾´´
|
|
Material
|
AISI 304
|
|
Control
|
Automatic
|
|
PLC panel
|
7 ´´
|
|
Warning system
|
Included / SMS or Email notification
|
EGOS 100
Full stainless steel electric steam generator equipped with automatic software, which enables easy pressure adjustment, automatic reporting of desalinization needs of the generator (fully automatic operation), and automatic control of the heating elements and their wear. Performance of EGOS- 100 is 130kg of steam per hour and maximum working pressure up to 6.0 Bar.
Main benefits:
- compact, low-maintenance device – with easy operation,
- pressure control possible from 0 to 6.0 Bar on PLC panel,
- demineralized water buffer tank integrated inside the machine,
- possibility to regulate generator output within 6 power levels on PLC panel,
- power consumption control on the display,
- consumption monitoring possible from initial installation and every power-up,
- waste water cooler for automatic desalination plant,
- electric heating elements made of stainless steel with large heating surface,
- allows installation in the workspace,
- automatic blowdown and desalination,
- equipment suitable for humid environments,
- made in the Czech Republic with CE certification.
Technical specification:
|
Type of el. generator
|
EGOS - 100
|
|
Input power
|
100 kW
|
|
Max. steam output
|
130 kg / h
|
|
El. connection values
|
105 kW / 150 A
|
|
Operating voltage
|
3 x 400 V / 50 Hz
|
|
Set pressure of safety equipment
|
7 Bar
|
|
Working pressure range
|
0 - 6 Bar
|
|
Water content
|
50 l
|
|
Dimensions
|
w784 x l1300 x h1850 mm
|
|
Weight (net)
|
495 kg
|
|
Weight (brutto)
|
660 kg
|
|
Connections
|
Cooler waste
|
DN 40
|
|
Water supply
|
G ½´´
|
|
Steam
|
G ½´´
|
|
Overflow storage tank
|
G 1´´
|
|
Drain from storage tank
|
G ½´´
|
|
Condensate
|
G ¾´´
|
|
Material
|
AISI 304
|
|
Control
|
Automatic
|
|
PLC panel
|
7 ´´
|
|
Warning system
|
Included / SMS or Email notification
|
EGOS 200
Full stainless steel electric steam generator equipped with automatic software, which enables easy pressure adjustment, automatic reporting of desalinization needs of the generator (fully automatic operation), and automatic control of the heating elements and their wear. Performance of EGOS- 200 is 260kg of steam per hour and maximum working pressure up to 6.0 Bar.
Main benefits:
- compact, low-maintenance device – with easy operation,
- pressure control possible from 0 to 6.0 Bar on PLC panel,
- demineralized water buffer tank integrated inside the machine,
- possibility to regulate generator output within 6 power levels on PLC panel,
- power consumption control on the display,
- consumption monitoring possible from initial installation and every power-up,
- waste water cooler for automatic desalination plant,
- electric heating elements made of stainless steel with large heating surface,
- allows installation in the workspace,
- automatic blowdown and desalination,
- equipment suitable for humid environments,
- made in the Czech Republic with CE certification.
Technical specification:
|
Type of el. generator
|
EGOS - 200
|
|
Input power
|
200 kW
|
|
Max. steam output
|
260 kg / h
|
|
El. connection values
|
210 kW / 300 A
|
|
Operating voltage
|
3 x 400 V / 50 Hz
|
|
Set pressure of safety equipment
|
7 Bar
|
|
Working pressure range
|
0 - 6 Bar
|
|
Water content
|
100 l
|
|
Dimensions
|
w784 x l1300 x h1850 mm
|
|
Weight (net)
|
603 kg
|
|
Weight (brutto)
|
750 kg
|
|
Connections
|
Cooler waste
|
DN 40
|
|
Water supply
|
G ½´´
|
|
Steam
|
G ½´´
|
|
Overflow storage tank
|
G 1´´
|
|
Drain from storage tank
|
G ½´´
|
|
Condensate
|
G ¾´´
|
|
Material
|
AISI 304
|
|
Control
|
Automatic
|
|
PLC panel
|
7 ´´
|
|
Warning system
|
Included / SMS or Email notification
|
