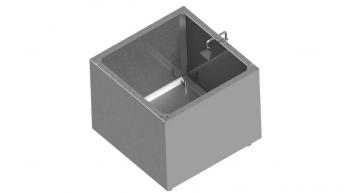

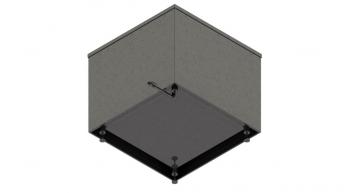

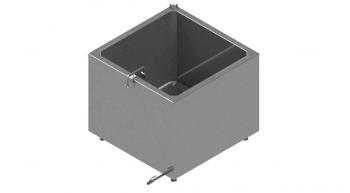

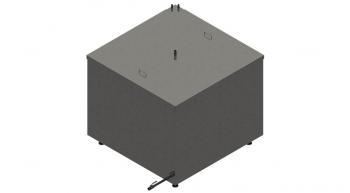

Open fermentation vat - OFV



open fermentation vat

Open fermentation vat OFV is stainless steel (AISI 304 – 1.4301) vessel mostly used for main fermentation. This type of vessel can be used for open fermentation in classical way, which produces the right Czech lager. Design of the vessel is 0.0 Bar pressure.



Product description:

Tank is manufactured containing standardized dimensions and accessories, or according to individual customer requirements. Standardly it is equipped with one cooling zone – duplicator, outside jacket and PUR isolation. All stainless steel and pressure vessels from our production have PED certification and follow all EU standards. Range of our production is from 100 liters up to 3 000 liters vessels.



Technical specification:

Open fermentation vat

Standard parameters

Net volume /HL/



Total volume /HL/



Total volume of glycol in duplicators  /L/



Total height /mm/

( B )

Length /mm/



Width /mm/

( A )

Weight of empty vessel /kg/



Weight of loaded vessel /kg/



Material

Stainless steel AISI 304 / 1.4301

Isolation

PUR 70 mm

Max. working pressure in the tank

0,0 bar

Max. working pressure in duplicators

1,5 bar

Top

Flat

Bottom

-

Legs - adjustable

4  pcs

Glycol cooling zones

1  pc on the sides

Sanitation arm / shower

DN 32 DIN 11 851 / 1 pc

Inlet / Outlet for beer

DN 32  DIN 11 851 / 1 pc

Spray ball - removable

Rotation / 1 pc

Manhole

-

Over / Under pressure safety valve

-

Sample valve

-

Temperature sensor

1  pc in Cylindrical part

Pressure regulator with manometer

-

Surface inside the vessel

Ra ≤ 0,8

Certification

PED



Tank can be equipped with an extra accessory:

 - mirror polished surface inside the tank.

Our company supply stainless steel vessels to all Europe countries with maximal customer satisfaction. Transport of the tanks is provided horizontally on a wooden pallet to avoid problems with large dimensions and safety during transport.

Price on request.
